Scanning

For the scanning functionality itself, see the documentation for Dispatcher ScanTrip Cloud and Dispatcher Stratus provided by Konica Minolta.

Setting up Dispatcher ScanTrip Cloud / Dispatcher Stratus integration with Dispatcher Paragon Cloud

If you wish authenticated users to seamlessly switch between the Cloud Terminal and the Dispatcher ScanTrip Cloud / Dispatcher Stratus application on the MFD, perform the following steps.

Configuring the integration in Dispatcher Paragon Cloud Web UI

1. Log in to Dispatcher ScanTrip Cloud / Dispatcher Stratus UI and go to Profile > Settings.
2. You will need the following information:
   1. Login URL
   2. Token URL
   3. Client ID
   4. Client Secret

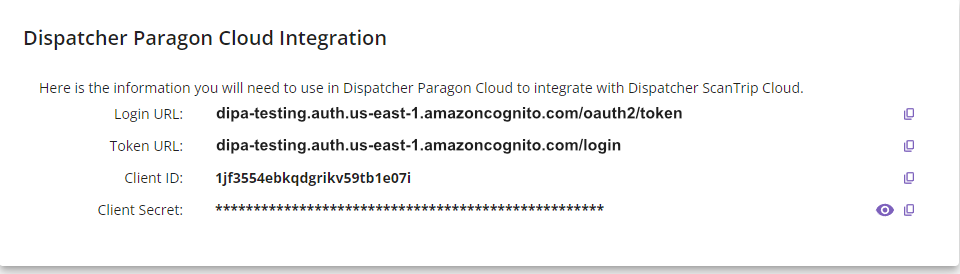

      Example:

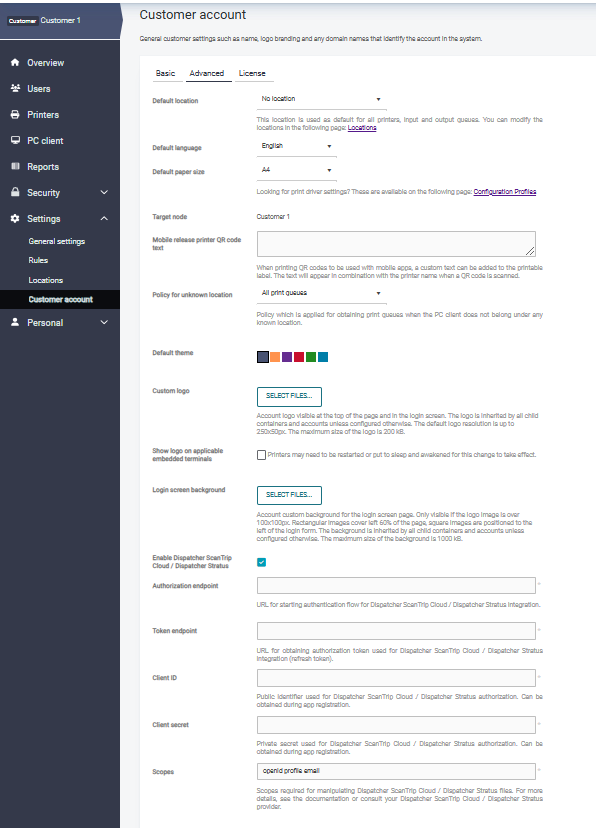

3. Log in to Dispatcher Paragon Cloud Web UI.
4. Click Customer information > Advanced options.
5. Select Enable Dispatcher ScanTrip Cloud / Dispatcher Stratus.
6. In Authorization endpoint, fill in the Login URL from Dispatcher ScanTrip Cloud / Dispatcher Stratus UI.
7. In Token endpoint, fill in the Token URL from Dispatcher ScanTrip Cloud / Dispatcher Stratus  UI.
8. In Client ID, fill in the Client ID from Dispatcher ScanTrip Cloud / Dispatcher Stratus  UI.
9. In Client secret, fill in the Client Secret from Dispatcher ScanTrip Cloud / Dispatcher Stratus  UI.
10. If necessary, modify the scopes. This is set by default to openid profile email. Do not change this setting unless you are an experienced administrator.







User authorization

After you have configured the integration, every user will need to authorize Dispatcher ScanTrip Cloud / Dispatcher Stratus on the Authorizations tab in My profile in Dispatcher Paragon Cloud Web UI.

Note that the authorization is valid only till the refresh token expires. After that, the user will need to authorize again. By default, the refresh token expires 30 days after authorization, but you can change this value. The minimum is 60 minutes, and the maximum is 10 years. For more information on how the refresh tokens work, see the following reference documentation: Using the refresh token.

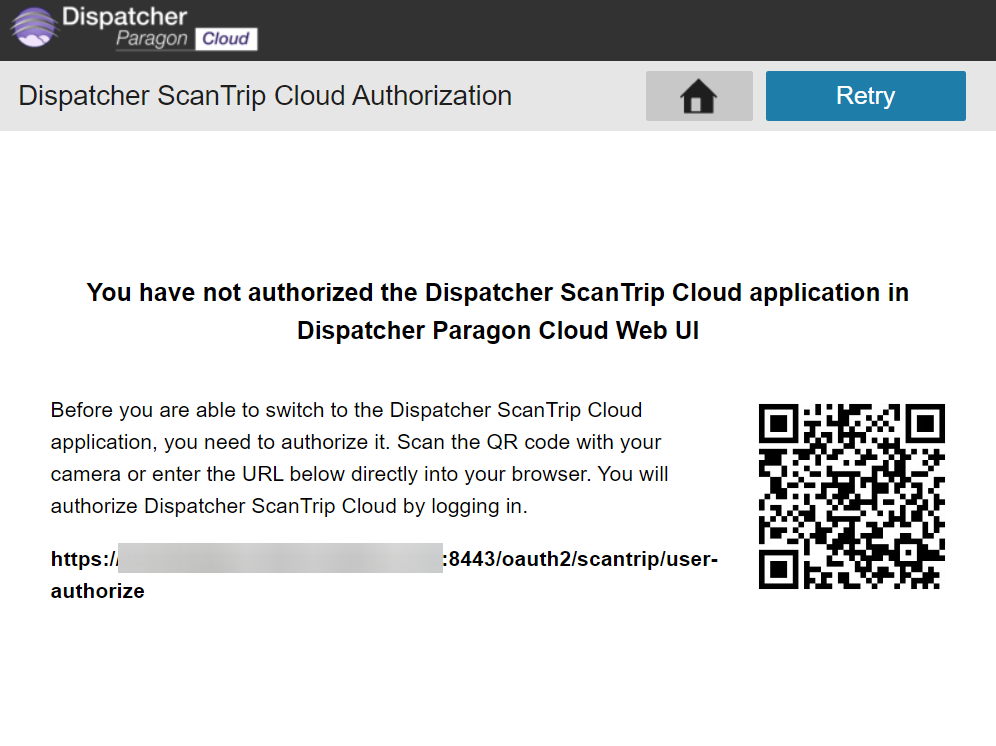

If the user has not authorized Dispatcher ScanTrip Cloud / Dispatcher Stratus, they will see the following screen on the MFD:

If the user authorized successfully and the MFD has both Cloud Terminal and Dispatcher ScanTrip Cloud / Dispatcher Stratus applications installed, they will be able to switch seamlessly between the Cloud Terminal and Dispatcher ScanTrip Cloud / Dispatcher Stratus applications without being logged out.
