Configure denial of service filtering for web UI

Introduction

Dispatcher Paragon Cloud server has a possibility to enable denial of service (DoS) filtering to prevent the system from being overloaded by excessive amounts of requests. DoS filter can be enabled for on-premise primary server by editing the configuration file: /opt/DispatcherParagon/conf/application.conf.

DoS filter configuration

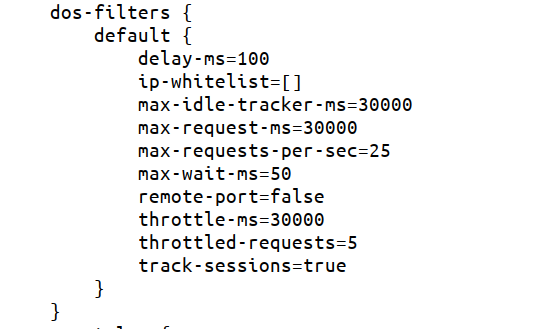

Multiple DoS filters can be defined under app.dos-filters section in the application configuration file. By default there is one filter defined called default:

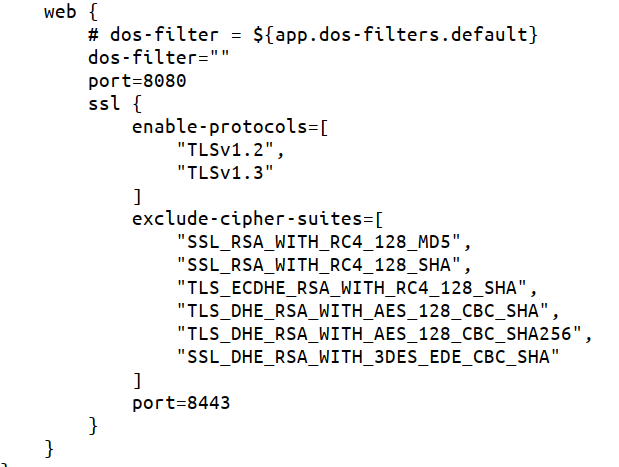

To activate the particular DoS filter it must be specified in the dos-filter parameter under web section:


Comment out the dos-filter = "" line (add the # sign) and uncomment the dos-filter = ${app.dos-filters.default} (remove the # sign).

Save the file and restart the server with systemctl restart safeq-cloud-server command.

DoS filter parameters

The following parameters control the behavior of the filter:

  • max-requests-per-sec – Maximum number of requests from a connection per second. Requests in excess of this are first delayed, then throttled. Default is 25.
  • delay-ms – Delay imposed on all requests over the rate limit, before they are considered at all: 100 (ms) = Default, -1 = Reject request, 0 = No delay
  • max-wait-ms – Length of time, in ms, to blocking wait for the throttle semaphore. Default is 50 ms.
  • throttled-requests – Number of requests over the rate limit able to be considered at once. Default is 5.
  • throttle-ms – Length of time, in ms, to async wait for semaphore. Default is 30000.
  • max-request-ms – Length of time, in ms, to allow the request to run. Default is 30000.
  • max-idle-tracker-ms – Length of time, in ms, to keep track of request rates for a connection, before deciding that the user has gone away, and discarding it. Default is 30000.
  • track-sessions – If true, usage rate is tracked by session if a session exists. Defaults to true.
  • remote-port – If true and session tracking is not used, then rate is tracked by IP and port (effectively connection). Defaults to false.
  • ip-whitelist – A comma-separated list of IP addresses that will not be rate limited.
